Deep Well Submersible Pump, 1.5HP 230V/60Hz, 27GPM Flow 259Ft Head, with 33Ft Electric Cord & Check Valve, 4" Stainless Steel Water Well Pump for Industrial,Irrigation,Home Use, IP68 Waterproof Grade

Deep Well Submersible Pump, 1.5HP 230V/60Hz, 27GPM Flow 259Ft Head, with 33Ft Electric Cord & Check Valve, 4" Stainless Steel Water Well Pump for Industrial,Irrigation,Home Use, IP68 Waterproof Grade features a 1.5 HP pure copper wire motor, five-stage thermoplastic impellers, a maximum flow rate of 27 gallons per minute, and a maximum lifting height of 259 ft. Constructed from stainless steel with an IP68 waterproof rating, this corded electric pump is designed for fully submerged operation in wells, reservoirs, canals, and rivers. It includes stainless steel filtration mesh, a built-in check valve, an additional brass check valve, and a 33 ft electric cord with a US plug.

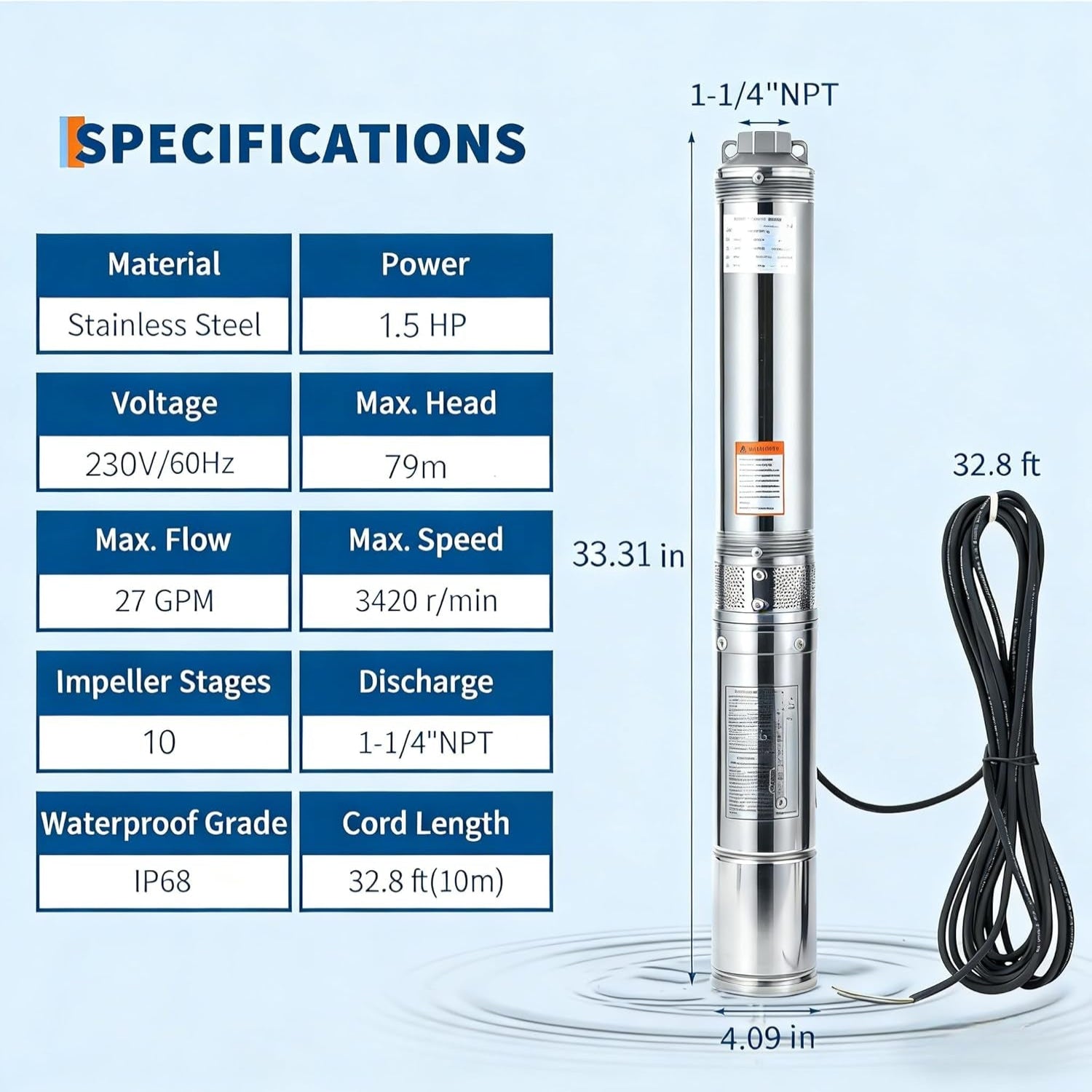

Specifications

• Product Type: Deep Well Submersible Pump

• Power Source: Corded Electric

• Rated Voltage: 230V/60HZ

• Rated Power: 1.5 HP

• Horsepower: 1.5 Horsepower

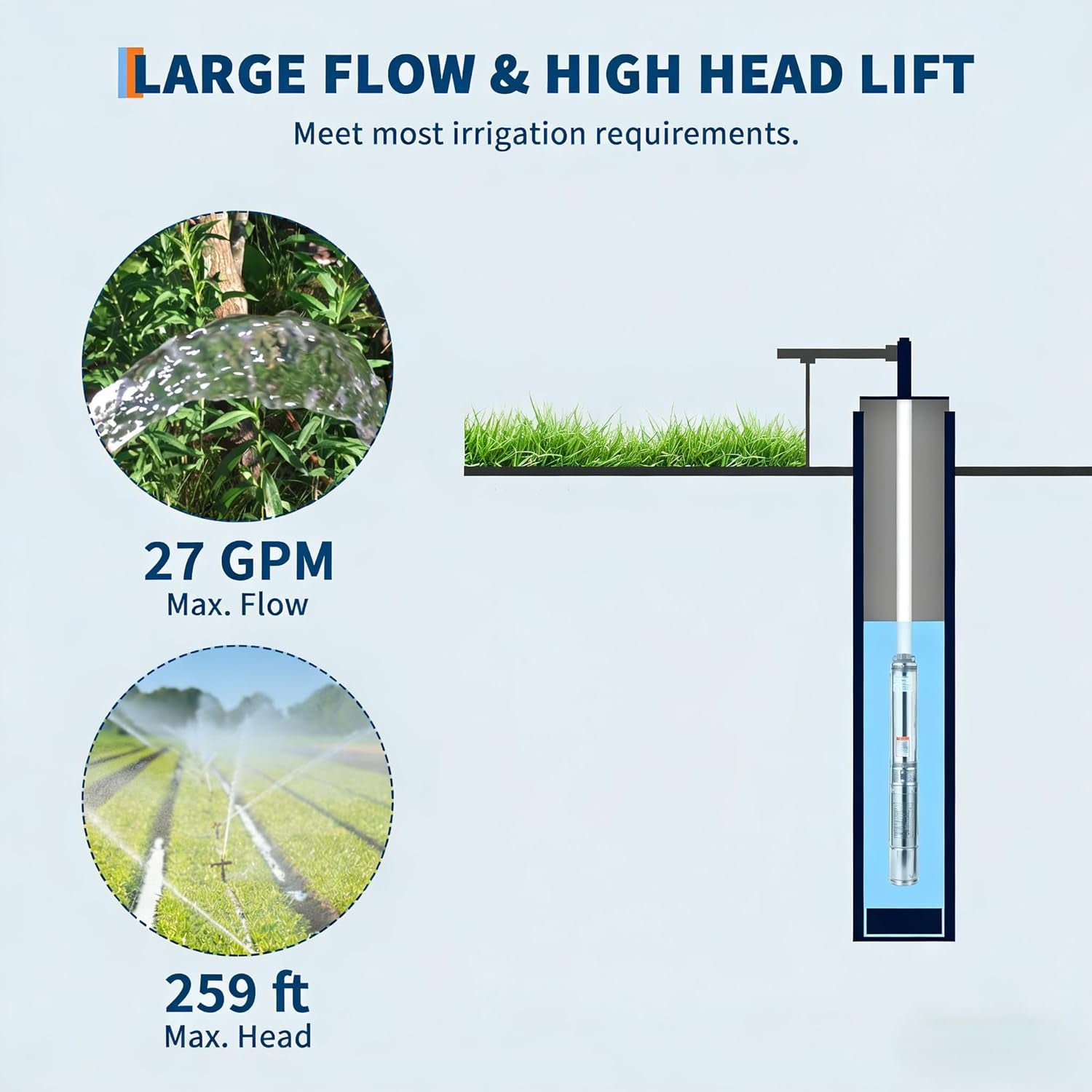

• Flow Rate: 27 Gallons Per Minute

• Maximum Flow Rate: 27 Gallons Per Minute

• Maximum Lifting Height: 259 Feet

• Diameter: 4 in

• Discharge: 1-1/4 in NPT

• Material: Stainless Steel

• Color: Silver

• Product Style: Submersible

• Product Dimensions: 30"L x 4.09"W x 4.09"H

• Item Weight: 30.8 Pounds

• Waterproof Rating: IP68

• Suitable Uses: Industrial use, irrigation, home use, farm use, and factory use

Features

• Five-Stage Impellers: Five-stage thermoplastic impellers support a maximum flow rate of 27 gallons per minute.

• Pure Copper Motor: The oil-immersed motor uses 100% copper construction for strong operation.

• Thermal Protection: The hermetically sealed motor is thermally protected against overheating.

• IP68 Waterproof Design: Designed to operate while fully submerged in water.

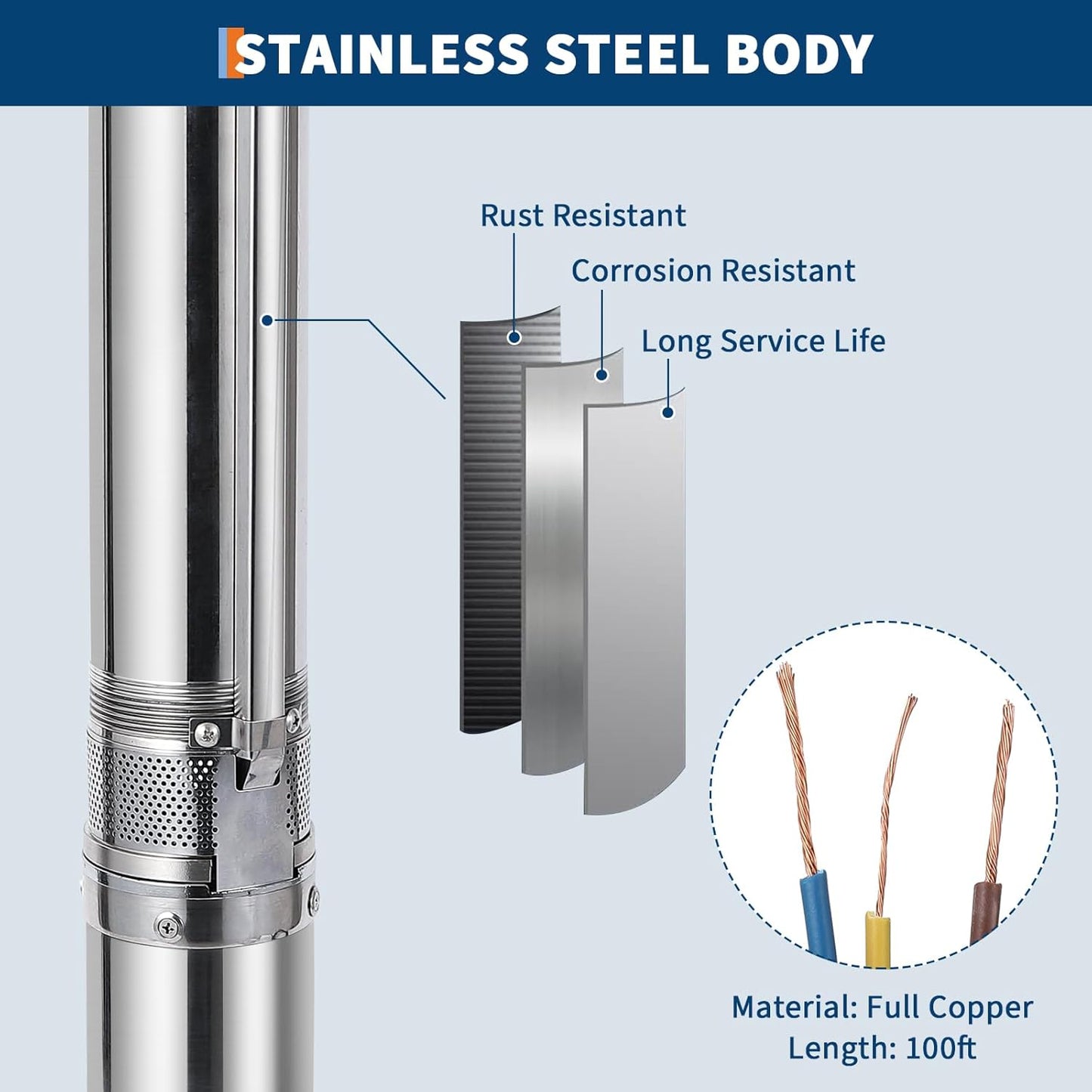

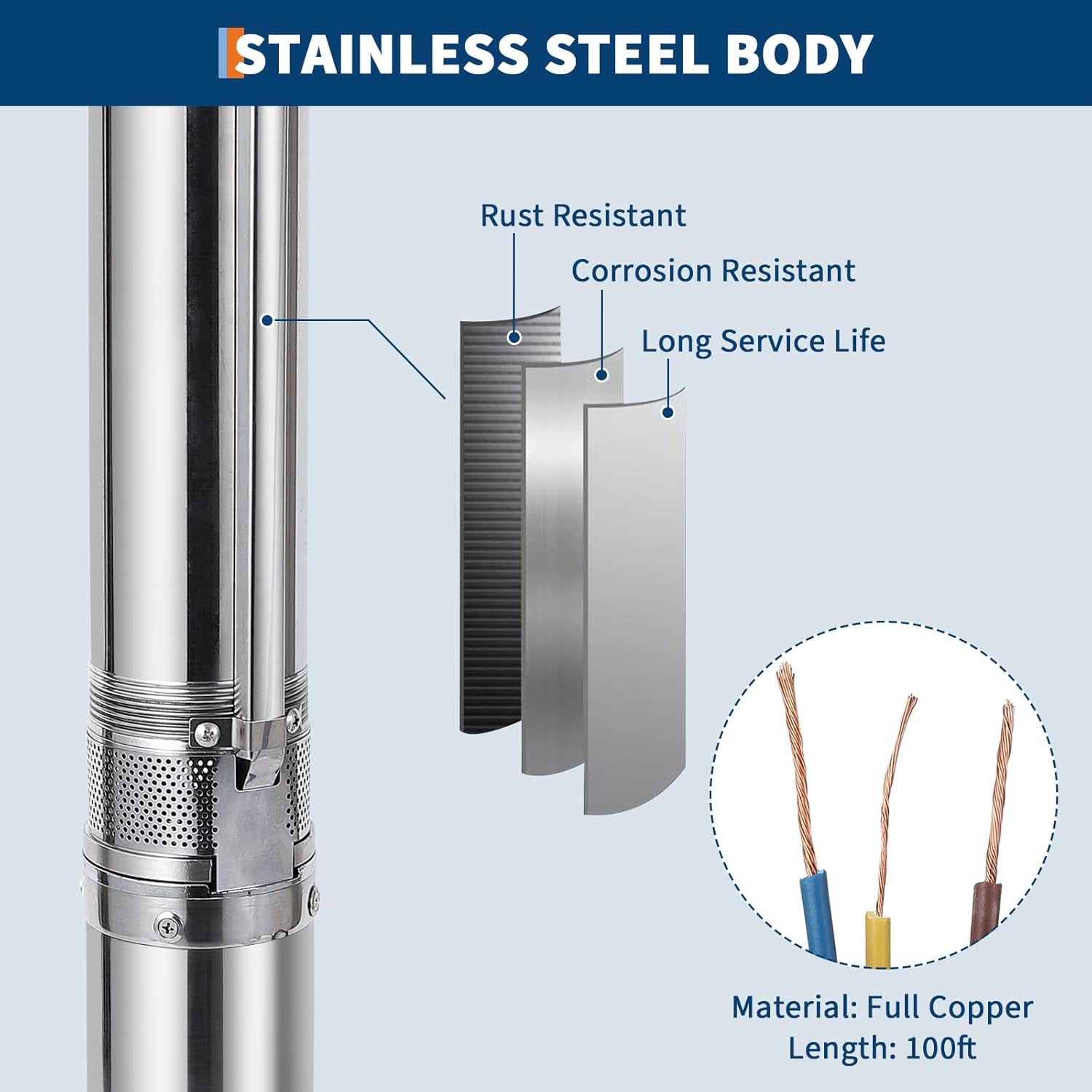

• Stainless Steel Construction: The stainless steel body provides enhanced corrosion resistance.

• Filtration Mesh: The 2 in wide stainless steel filtration mesh helps remove debris and impurities while minimizing clogs.

• Built-In Check Valve: Helps prevent backflow and protect the pump from clogs.

• Additional Check Valve: An additional brass check valve is included with the pump.

• Versatile Water Source Use: Suitable for extracting water from deep wells, reservoirs, canals, and rivers.

• Multiple Applications: Designed to supply water for homes, farms, farmland, factories, and irrigation systems.

Installation

• Well Casing Clearance: The well casing diameter must exceed the pump diameter by at least 0.39 in/10 mm.

• Newly Drilled Wells: Place a layer of gauze at the inlet when using the pump in a newly drilled well.

• High-Impurity Water: Add a layer of gauze in front of the filtration inlet to help keep large debris out.

Maintenance

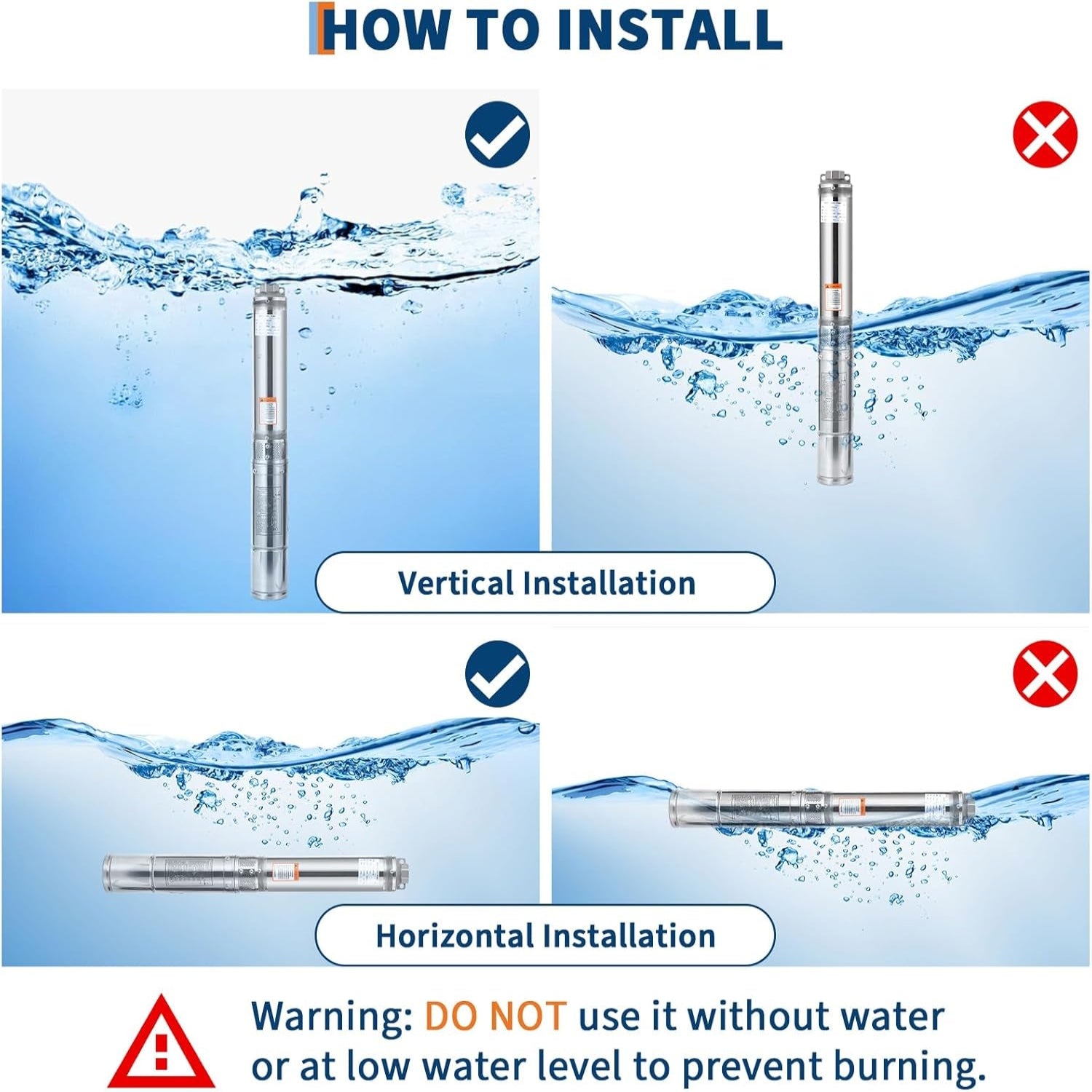

• During Use: Do not operate the pump without water or when water levels are low.

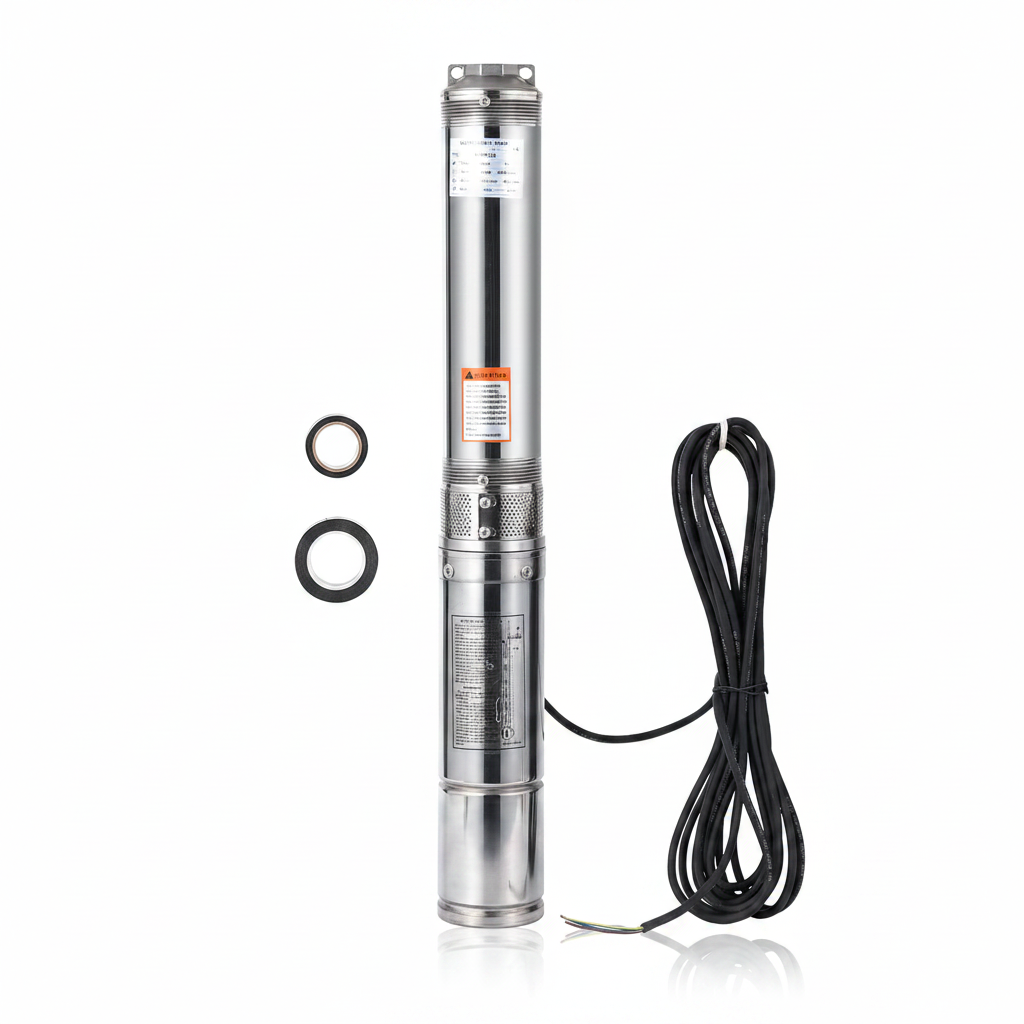

Package Contents

• Pump: 1 x Deep Well Submersible Pump

• Check Valve: 1 x Brass Check Valve

• Connector: 1 x Conversion Connector

• Electric Cord: 1 x 33 ft Electric Cord with US Plug
